Category: Eddy Current Flaw Detector

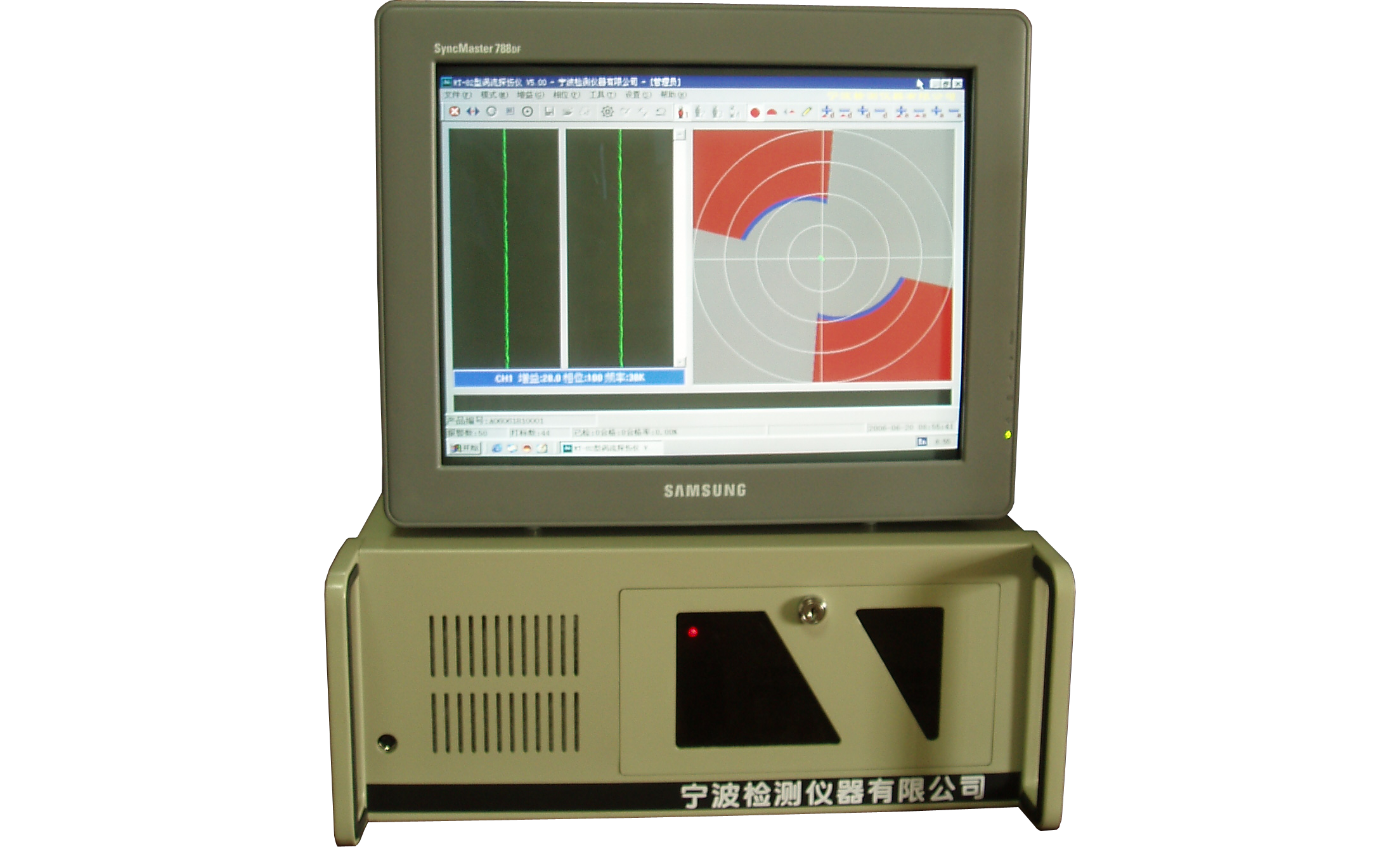

Main Technical Parameters

1. Frequency range: 100Hz-2MHz set as need, suitable for any metallic material.
2. Magnification: 0-70db, step for 0.1db.
3. Phase: 0°- 360°, step for 1°
4. Two independent optional frequency.
5. Automatic phase, amplitude analysis.
6. Automatic zero system: Zero intervals can be set.
7. Three different style of alarm area, and can be applied to any modes.
8. Cut start and end signal function.
9. Auto-screen/tracking impedance showed, and can be set interval or cancel.
10. Automatic delay alarm system, and delay time can be set.
11. Automatic delay marking system, and delay time can be set.
12. Replay testing signal and two-way access, can automatic save this in hard disk, and you can burn a disc for permanent preservation.
13. Perfect documents process function, and customized production of standard parameters.
14. Automatic high-speed analog/digital electronic equilibrium.
15. Allocate every probe: Out-through probe, rotational-scan probe, etc.
16. Suitable for online quality testing of metal pipe and bar manufacturers.

System applicable standards:

• China: GB/T 14480–93, GB/T 7735—98

GB/T 5248–98, GB/T 5126—2001

GB/T 12969.2, GB/T 11260–96

• Japan: JISH 0502
• S.A: ASTM-E 243–97
• Germany: DIN 54141

Applications

• Online nondestructive testing on copper tube, steel pipe, stainless steel pipe, welded pipe, aluminum-plastic pipe, steel wire, bimetallic tube, optical cable, alclad steel wire, aluminum wire and metal bar production-line
• Nondestructive testing on oil casing, sucker rod, hollow shaft, etc.
• Nondestructive testing on condenser tube, air conditioner pipe, automobile oil pipe, etc.
• Nondestructive testing on various kinds of metal pipe, bar, wire, etc.

Main Technical Parameters

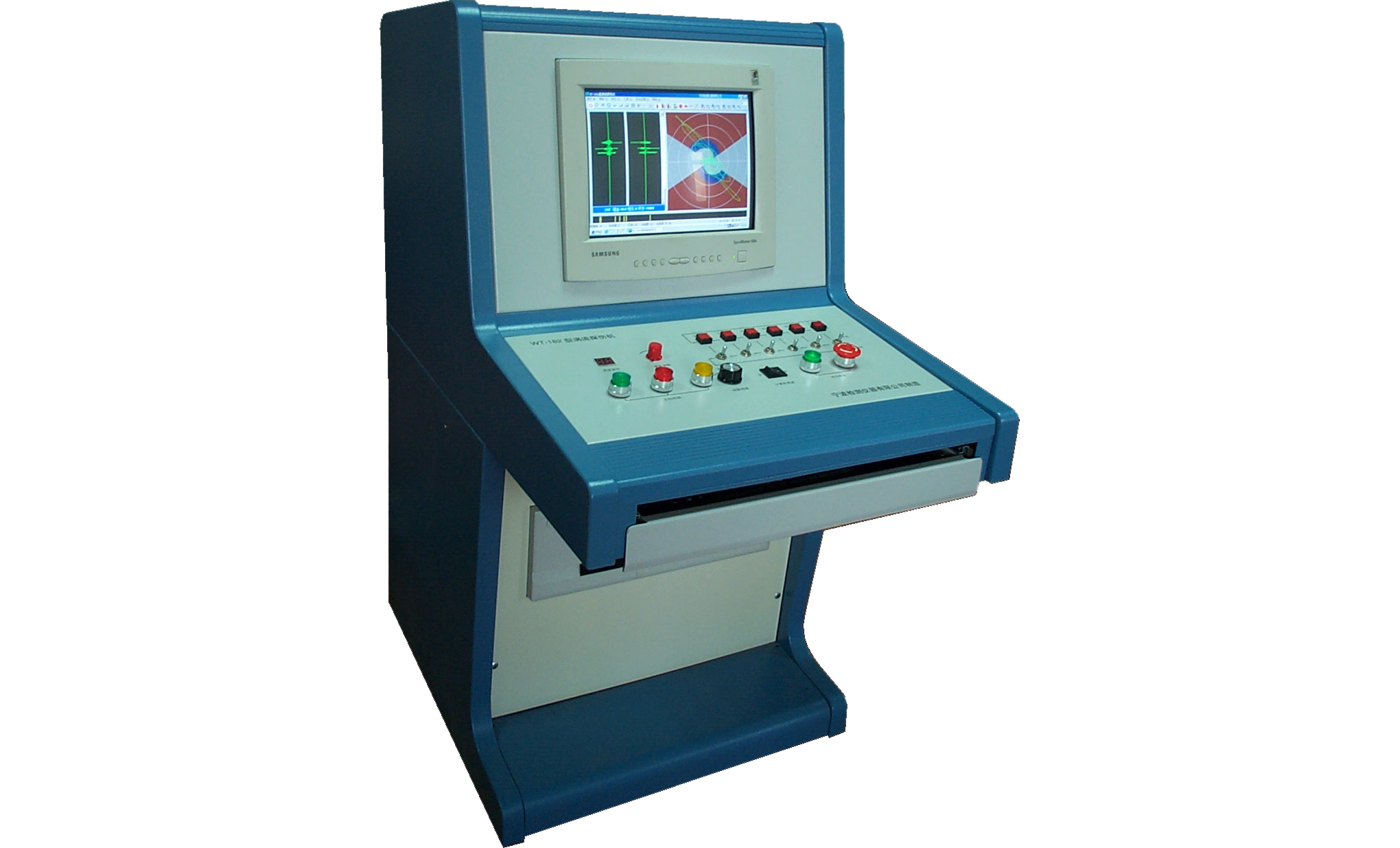

1. Adapting industrial control cabinet, suitable for production line and other harsh environments. And with control panel for production line controlment.
2. Frequency range: 100Hz-2MHz set as need, suitable for any metallic material.
3. Magnification: 0-70db, step for 0.1db.
4. Phase: 0°- 360°, step for 1°
5. Two independent optional frequency.
6. Automatic phase, amplitude analysis.
7. Automatic zero system: Zero intervals can be set.
8. Three different style of alarm area, and can be applied to any modes.
9. Cut start and end signal function.
10. Auto-screen/tracking impedance showed, and can be set interval or cancel.
11. Automatic delay alarm system, and delay time can be set.
12. Automatic delay marking system, and delay time can be set.
13. Replay testing signal and two-way access, can automatic save this in hard disk, and you can burn a disc for permanent preservation.
14. Perfect documents process function, and customized production of standard parameters.
15. Automatic high-speed analog/digital electronic equilibrium.
16. Allocate every probe: Out-through probe, rotational-scan probe, etc.
17. Suitable for online quality testing of metal pipe and bar manufacturers.

System applicable standards:

• China: GB/T 14480–93, GB/T 7735—98

GB/T 5248–98, GB/T 5126—2001

GB/T 12969.2, GB/T 11260–96

• Japan: JISH 0502
• S.A: ASTM-E 243–97
• Germany: DIN 54141

Applications

• Online nondestructive testing on copper tube, steel pipe, stainless steel pipe, welded pipe, aluminum-plastic pipe, steel wire, bimetallic tube, optical cable, alclad steel wire, aluminum wire and metal bar production-line
• Nondestructive testing on oil casing, sucker rod, hollow shaft, etc.
• Nondestructive testing on condenser tube, air conditioner pipe, automobile oil pipe, etc.
• Nondestructive testing on various kinds of metal pipe, bar, wire, etc.

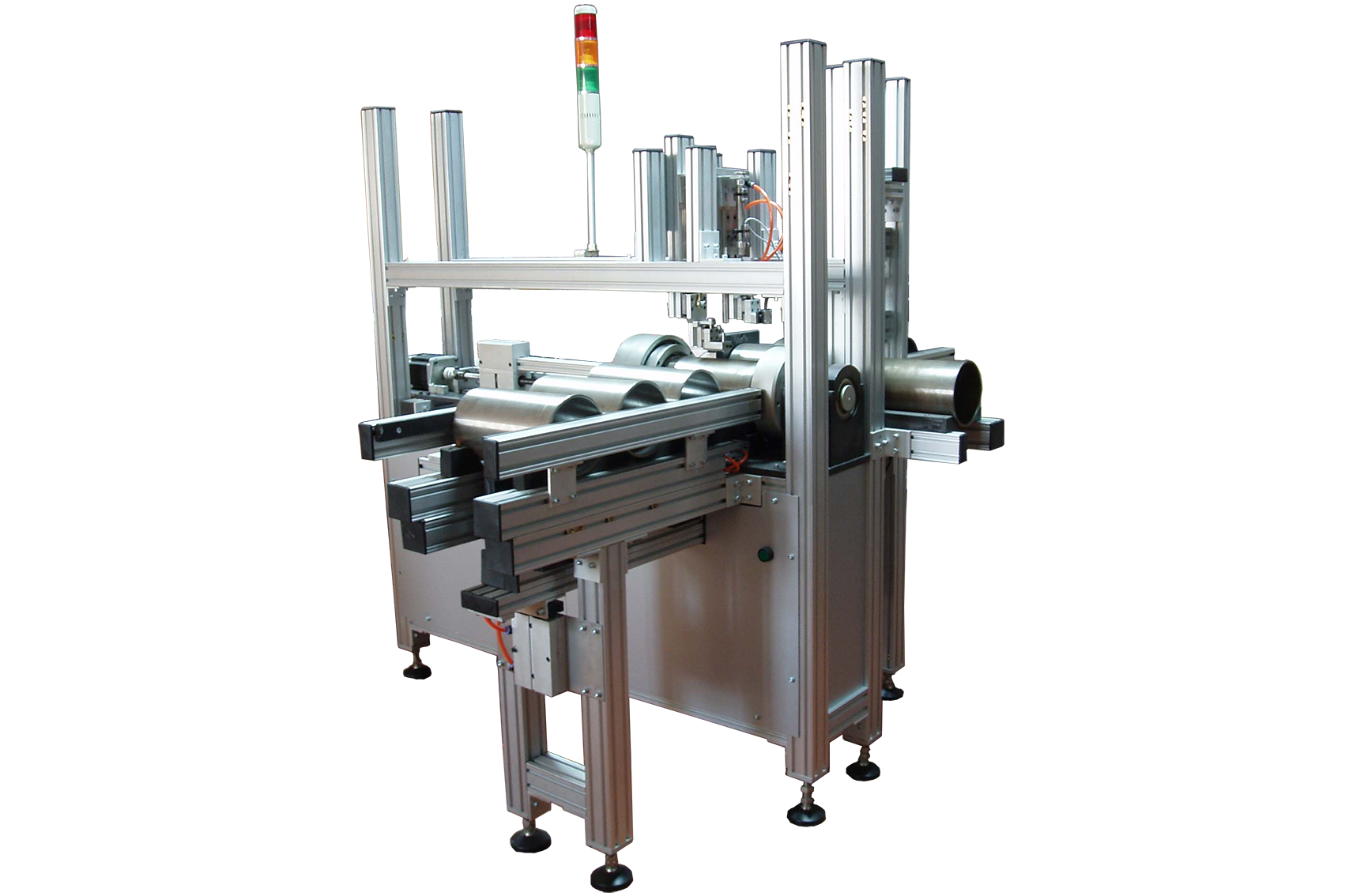

WT-842 Cylinder Sleeve Eddy Current Flaw Detector can test the ID, OD, sealing groove and end groove of cylinder sleeve at one time.

Main features:

1. Work with four-channel.
2. Detecting area: ID, OD, seal groove and terminal face trench.
3. Speed: 15-30 secs/piece.
4. Detection sensitivity: ≥0.1mm depth cracks.
5. Equipment noise: ≤60 db. Power: ≤500 W (220V).
6. Frequency range: 100Hz-1MHz.
7. Magnification: 0-70db.
8. Phase: 0°- 360°.
9. Automatic loading, selecting and counting.
10. No damages after detection.
11. Detect without demagnetization.
12. Statistics total number, qualified number, qualified rate, etc.
