Category: Material Sorting Machine

Categories
Material Sorting Machine

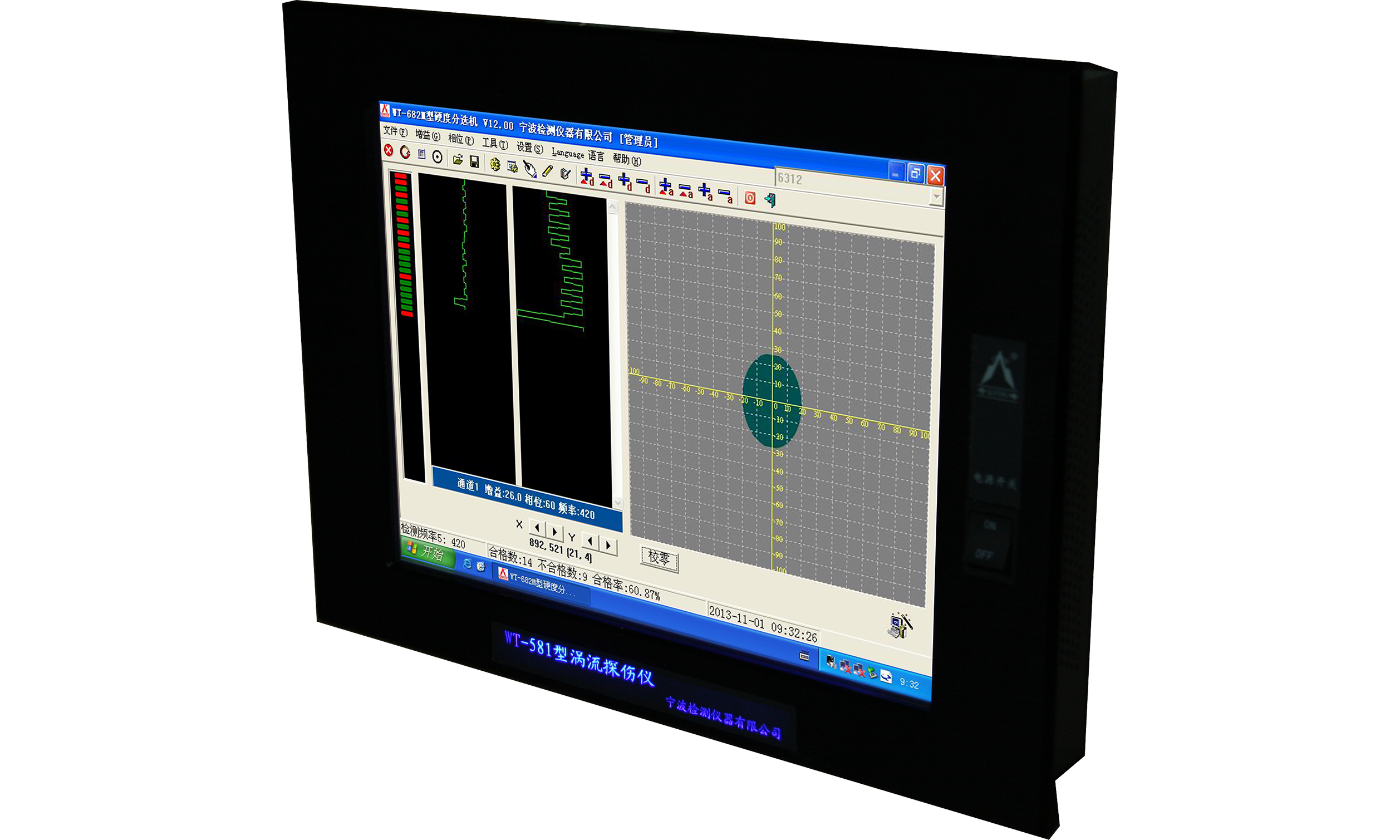

WT-591M Material Sorting Machine

Suitable for online and offline 100% NDT of pipes, bars, wires, auto parts, bearings, etc. With multi-frequency mixing technology to select and separate different materials.

Main features

  1. Using multi-frequency mixing technology
  2. 15-inch LCD touch screen.
  3. Frequency range: 100Hz-9.9MHz. Suitable for all kinds of metals.
  4. Sensitives: 12-70dB.
  5. Upper limit and lower limit are free setting. Output when out of range.
  6. No damage after detection.
  7. Statistics total number, qualified number, qualified rate, etc.
  8. Power: ~220V ± 10%， ≤
  9. Dimension: 420mm×306mm×80mm.
  10. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  11. Auto numbering.
  12. Automatic save detection data and replay.
  13. Automatic detect head & end at option.
Categories
Material Sorting Machine

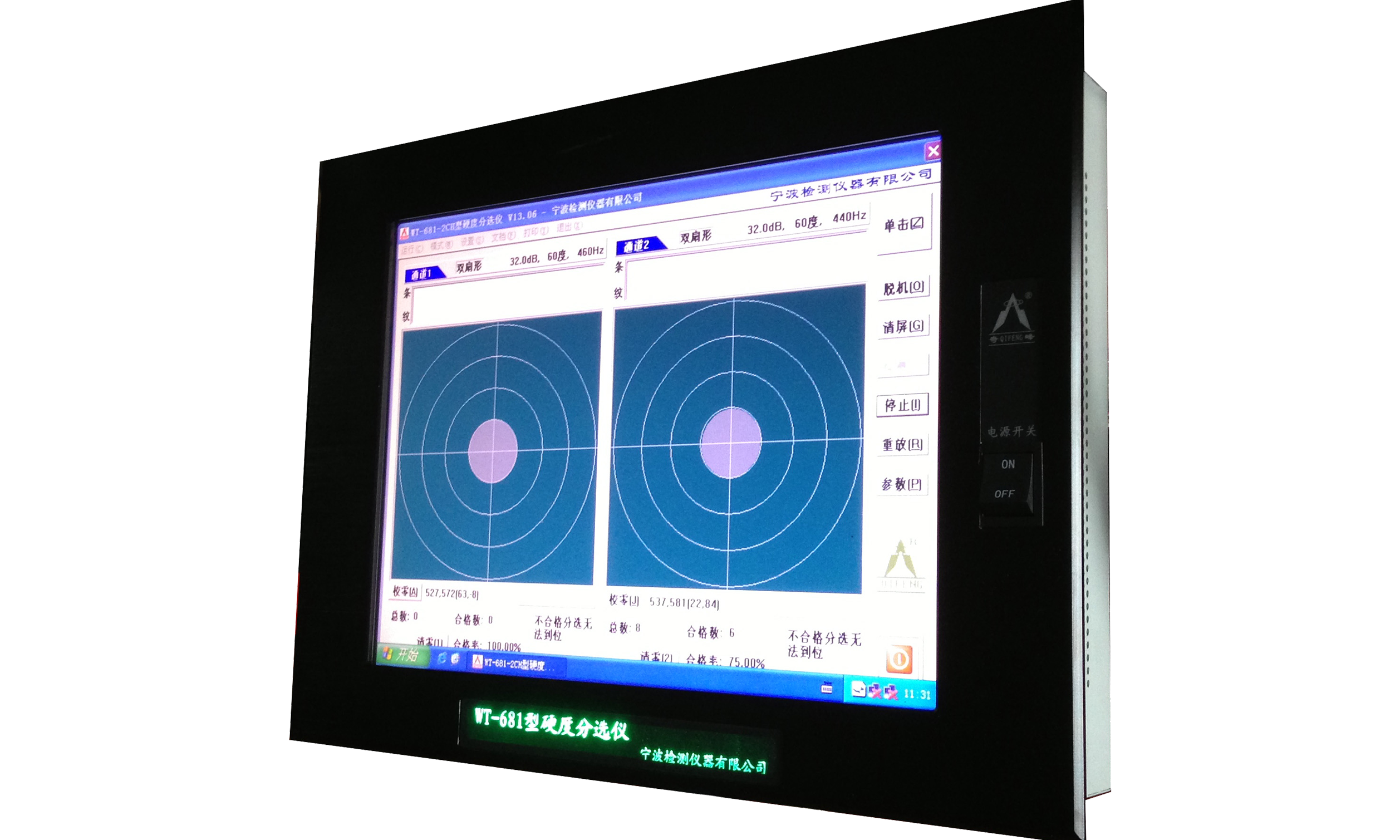

WT-592M Material Sorting Machine

Suitable for online and offline 100% NDT of pipes, bars, wires, auto parts, bearings, etc. detect two parts one time with two separated channels. With multi-frequency mixing technology to select and separate different materials.

Main features

  1. Using multi-frequency mixing technology
  2. 15 inch LCD touch screen.
  3. Frequency range: 100Hz-9.9MHz. Suitable for all kinds of metals.
  4. Sensitives: 12-70dB,
  5. Upper limit and lower limit are free setting. Output when out of range.
  6. No damage after detection.
  7. Statistics total number, qualified number, qualified rate, etc.
  8. Power: ~220V ± 10%， ≤
  9. Dimension: 420mm×306mm×80mm.
  10. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  11. Auto numbering.
  12. Automatic save detection data and replay.
  13. Automatic detect head & end at option.
  14. Two separated channels.
Categories
Material Sorting Machine

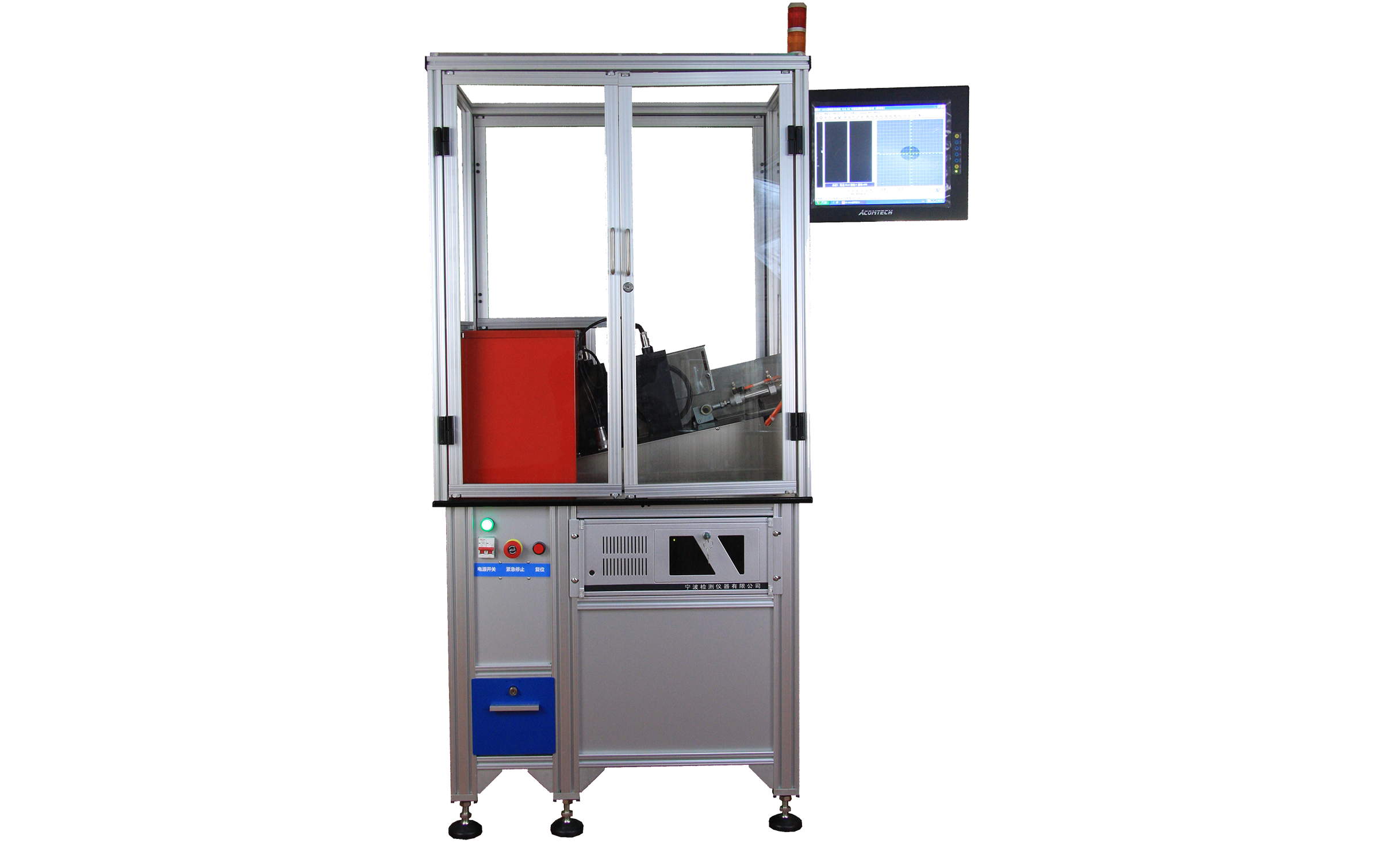

WT-682M Material Sorting Machine

Suitable for online 100% NDT of rollers, bearing rings, etc. With multi-frequency mixing technology to select and separate different materials.

Main features

  1. Using multi-frequency mixing technology
  2. 15 inch LCD touch screen.
  3. Frequency range: 100Hz-9.9MHz. Suitable for all kinds of metals.
  4. Sensitives: 12-70dB,
  5. Upper limit and lower limit are free setting. Auto kick out of NG parts.
  6. No damage after detection.
  7. Statistics total number, qualified number, qualified rate, etc.
  8. Power: ~220V ± 10%， ≤
  9. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  10. Auto numbering.
  11. Automatic save detection data and replay.
