WT-591H Hardness Sorting Machine

Suitable for online and offline 100% NDT of pipes, bars, wires, auto parts, bearings, etc. With multi-frequency mixing technology to separate materials with different hardness and case depth.

Main features

  1. Using multi-frequency mixing technology
  2. 15-inch LCD touch screen.
  3. Frequency range: 10Hz-1MHz. Suitable for all kinds of metals.
  4. Sensitives: ±1HRC. Gain: 12-70dB.
  5. Upper limit and lower limit are free setting. Output when out of range.
  6. No damage after detection.
  7. Statistics total number, qualified number, qualified rate, etc.
  8. Power: ~220V ± 10%
  9. Dimension: 420mm×306mm×80mm.
  10. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  11. Auto numbering.
  12. Automatic save detection data and replay.

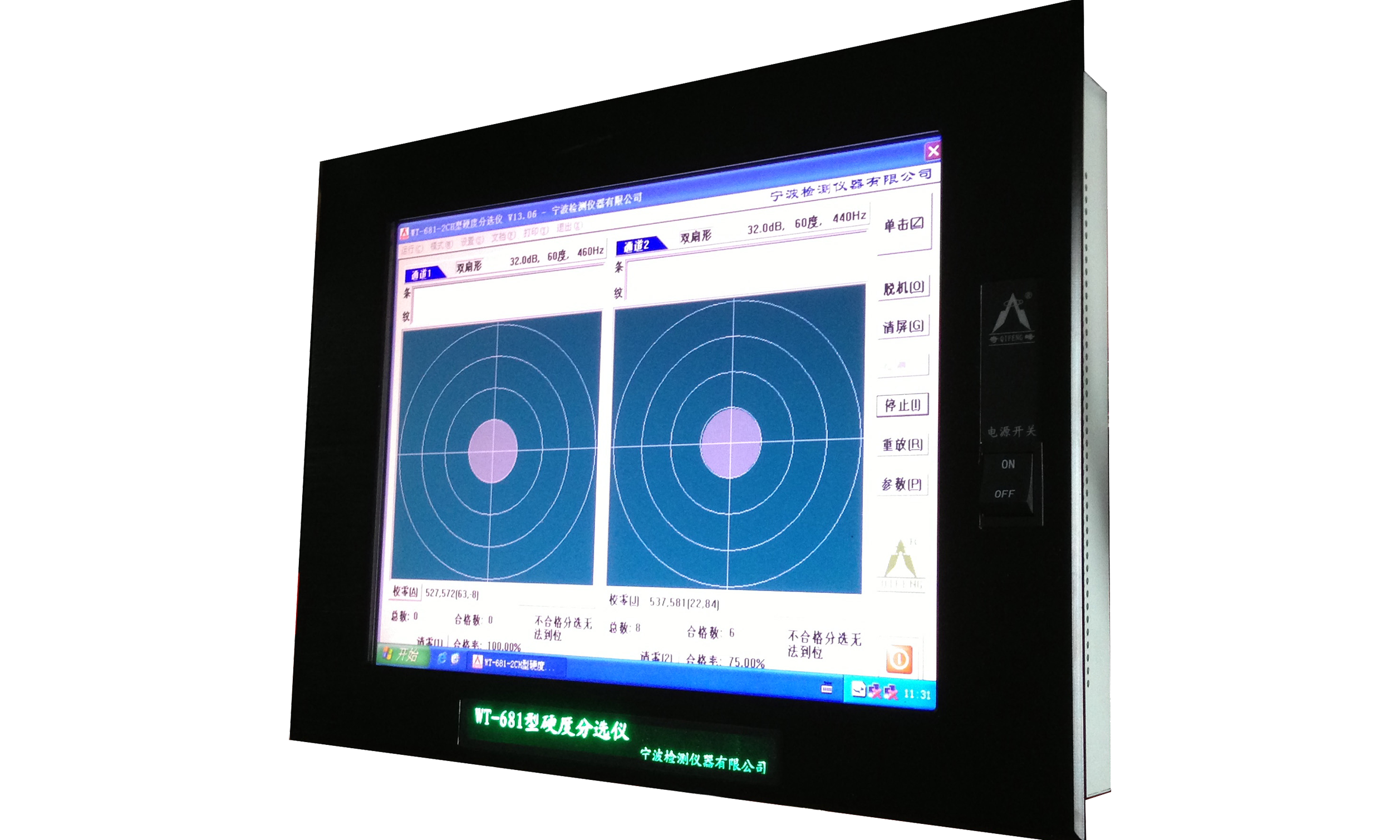

WT-592H Hardness Sorting Machine

Suitable for online and offline 100% NDT of pipes, bars, wires, auto parts, bearings, etc. With multi-frequency mixing technology to separate materials with different hardness and case depth.

Main features

  1. Using multi-frequency mixing technology
  2. 15-inch LCD touch screen.
  3. Two separated channels.
  4. Frequency range: 10Hz-1MHz. Suitable for all kinds of metals.
  5. Sensitives: ±1HRC. Gain: 12-70dB.
  6. Upper limit and lower limit are free setting. Output when out of range.
  7. No damage after detection.
  8. Statistics total number, qualified number, qualified rate, etc.
  9. Power: ~220V ± 10%
  10. Dimension: 420mm×306mm×80mm.
  11. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  12. Auto numbering.
  13. Automatic save detection data and replay.

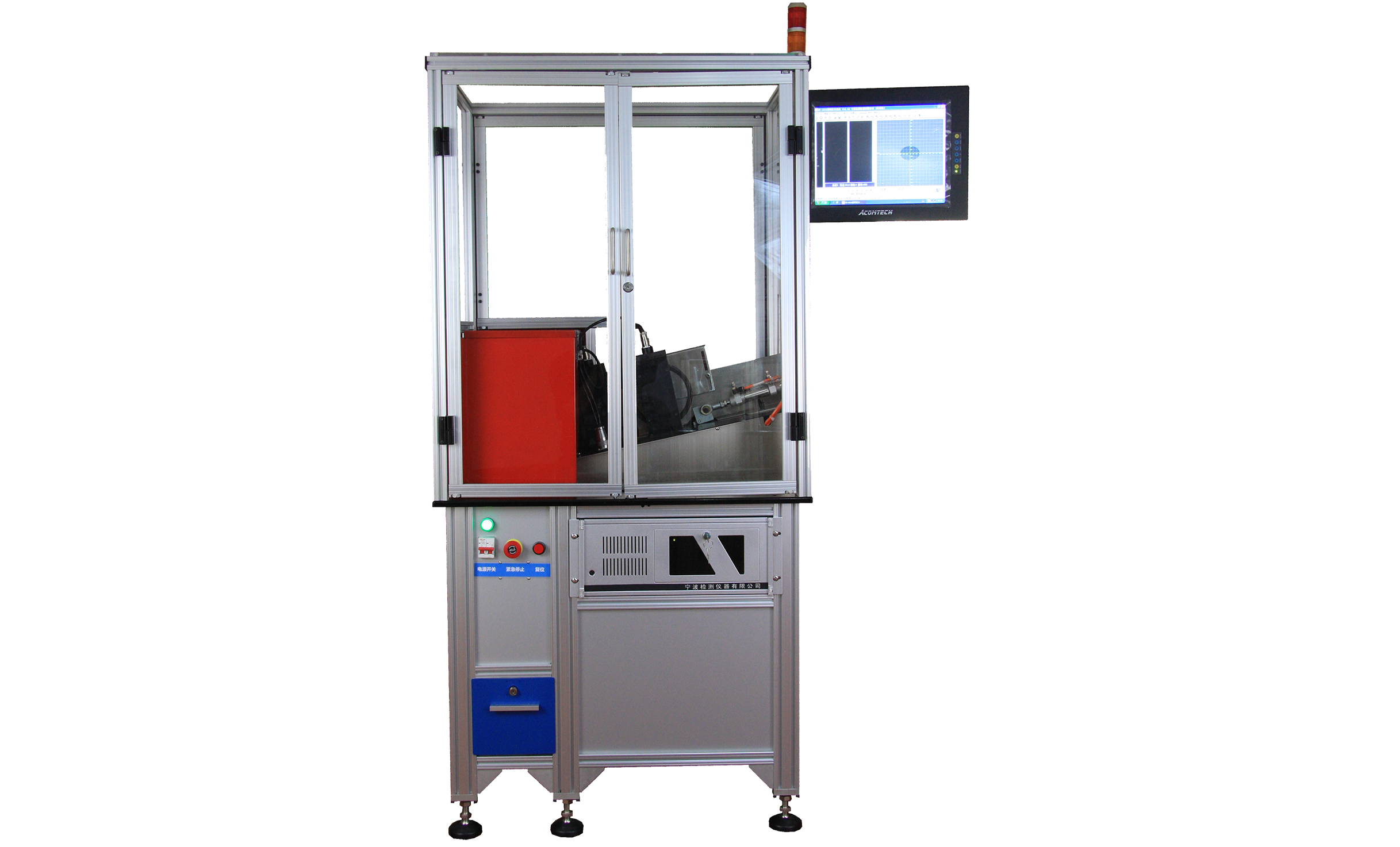

WT-682H Hardness Sorting Machine

Suitable for online 100% NDT of rollers, bearing rings, etc. With multi-frequency mixing technology to select and separate different hardness of the parts.

Main features

  1. Using multi-frequency mixing technology
  2. 15-inch LCD touch screen.
  3. Using industrial computer
  4. Frequency range: 100Hz-1MHz. Suitable for all kinds of metals.
  5. Sensitives: 12-70dB,
  6. Upper limit and lower limit are free setting. Auto kick out of NG parts.
  7. Speed: 2 secs/piece.
  8. No damage after detection.
  9. Statistics total number, qualified number, qualified rate, etc.
  10. Power: ~220V ± 10%
  11. Working environment: Temperature: -5ºC-60º Humidity: 10%-90% RH.
  12. Auto numbering.
  13. Automatic save detection data and replay.

WT-632 Integrated Eddy Current Testing Machine

WT-632 Integrated Eddy Current Testing Machine detect flaws on the OD and unqualified hardness of cylinder rollers. Suitable for the parts which need both flaw detection and hardness sorting.

Main features:

  1. Two separate channels. One for flaw detection, one for hardness sorting.
  2. Detection sensitivity: ≥0.05mm length, ≥2mm depth cracks. ≥
  3. Speed: 2 secs/piece.
  4. Automatic loading, selecting, counting and unloading.
  5. No damage after detection.
  6. Detect without demagnetization.
  7. Statistics total number, qualified number, qualified rate, etc.

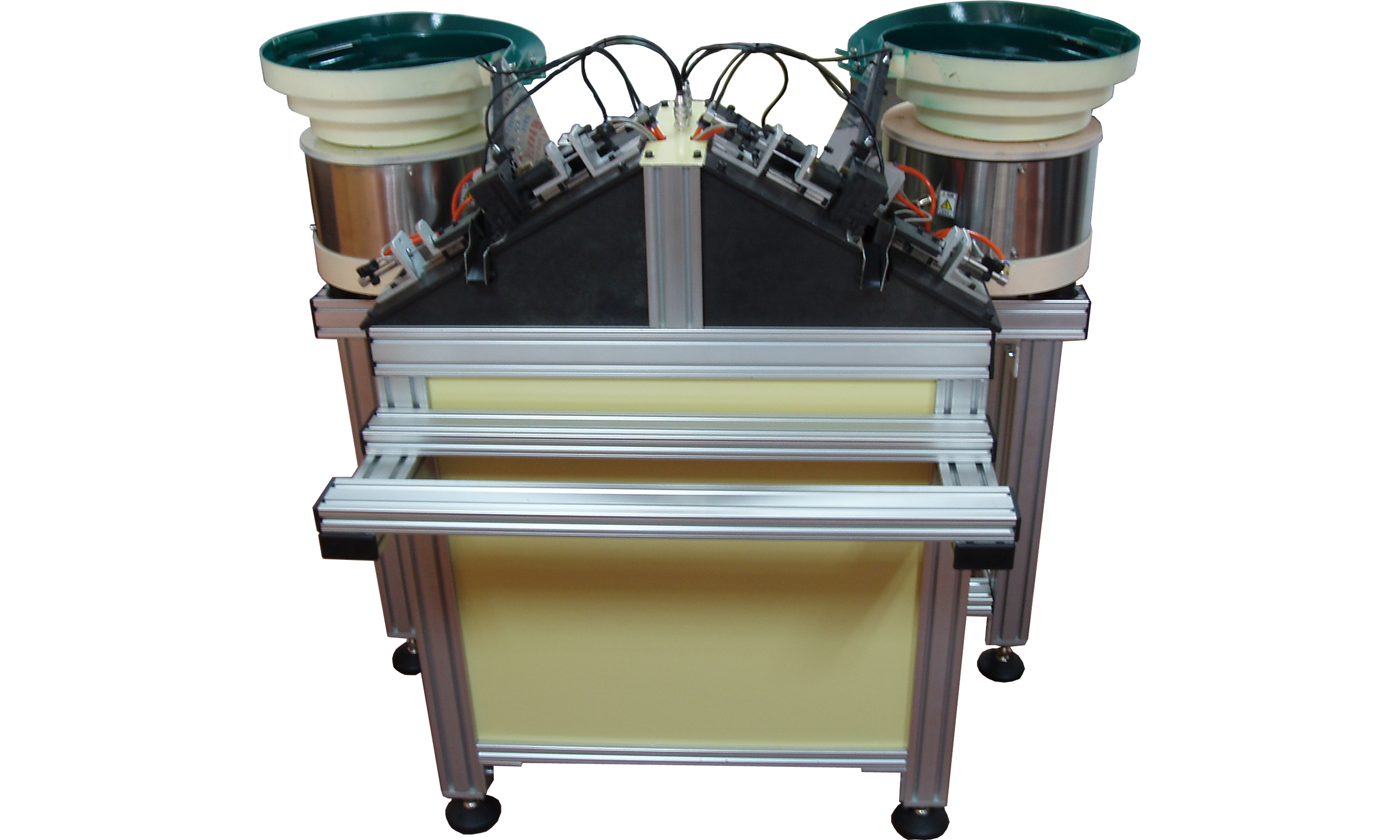

WT-636H Hardness Sorting Machine

An automatic eddy current machine which suitable for hardness sorting of small parts. Especially for 100% detection of standard parts.

Main features:

  1. 15-inch LCD touch screen.
  2. Two separated channels.
  3. Sensitivity: ±2HRC.
  4. Speed: 1.5 sec/piece (two channels).
  5. Automatic load, select, count and unload.
  6. No damage after detection.
  7. Statistics total number, qualified number, qualified rate, etc.

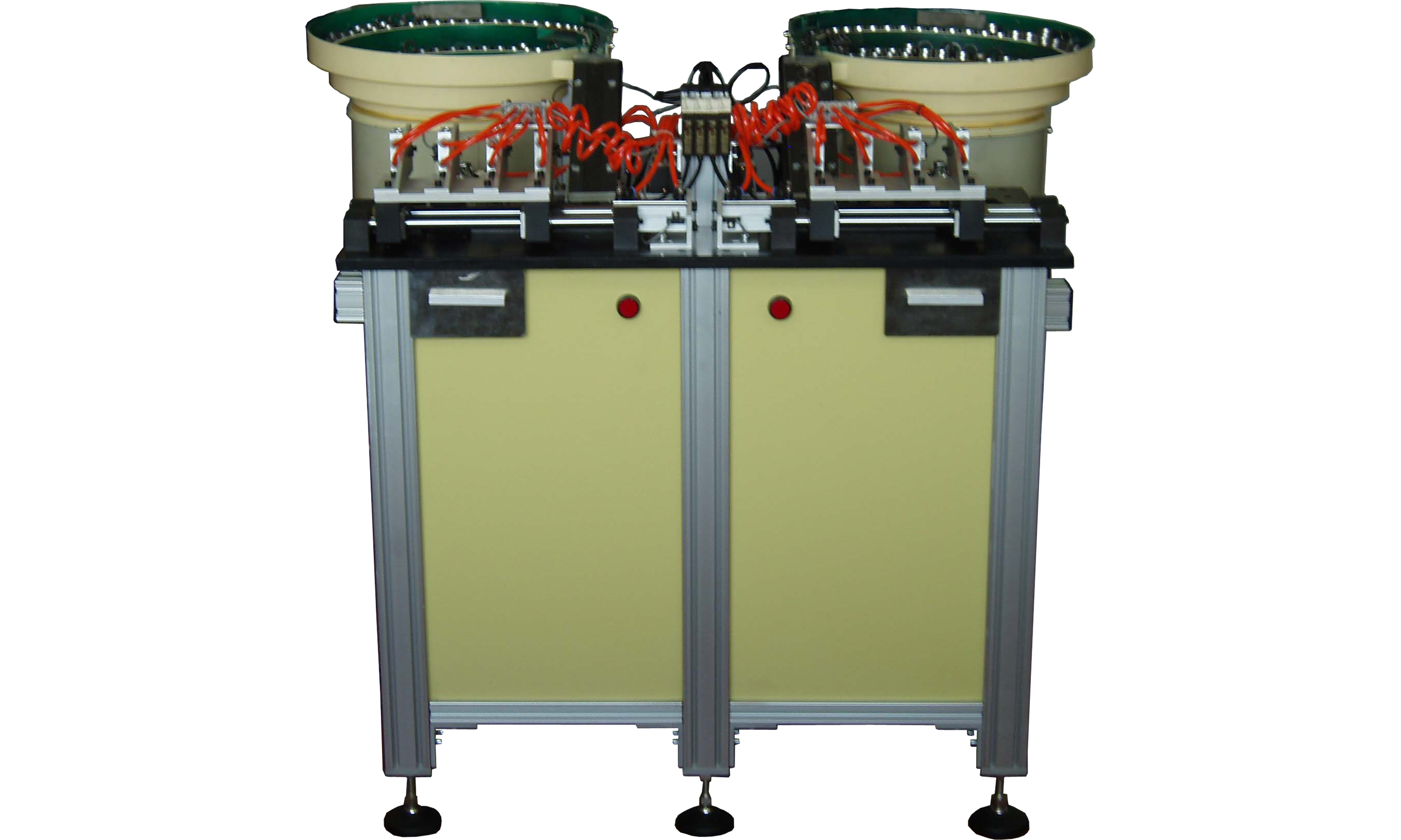

WT-638H hardness Sorting Machine

An automatic eddy current machine which suitable for hardness sorting of small and thin parts. Especially for 100% detection of standard parts.

Main features:

  1. Suitable for: small and thin parts (bearing rings).
  2. 15-inch LCD touch screen.
  3. Two separated channels.
  4. Frequency range: 100Hz-2MHz.
  5. Parts size: customize.
  6. Sensitivity: ±1HRC.
  7. Automatic load, select, count and unload.
  8. Speed: 1 pieces/sec (two channels).
  9. Sampling speed: 4 × 25000/sec.
  10. Gain: 12-70dB.
  11. Phase: 0 – 360°.
  12. Statistics total number, qualified number, qualified rate, etc.
  13. Industrial computer.
  14. No damage after detection.
  15. Power: ~220V ± 10%, ≤600W.
  16. Dimension: 900mm×650mm×1000mm.

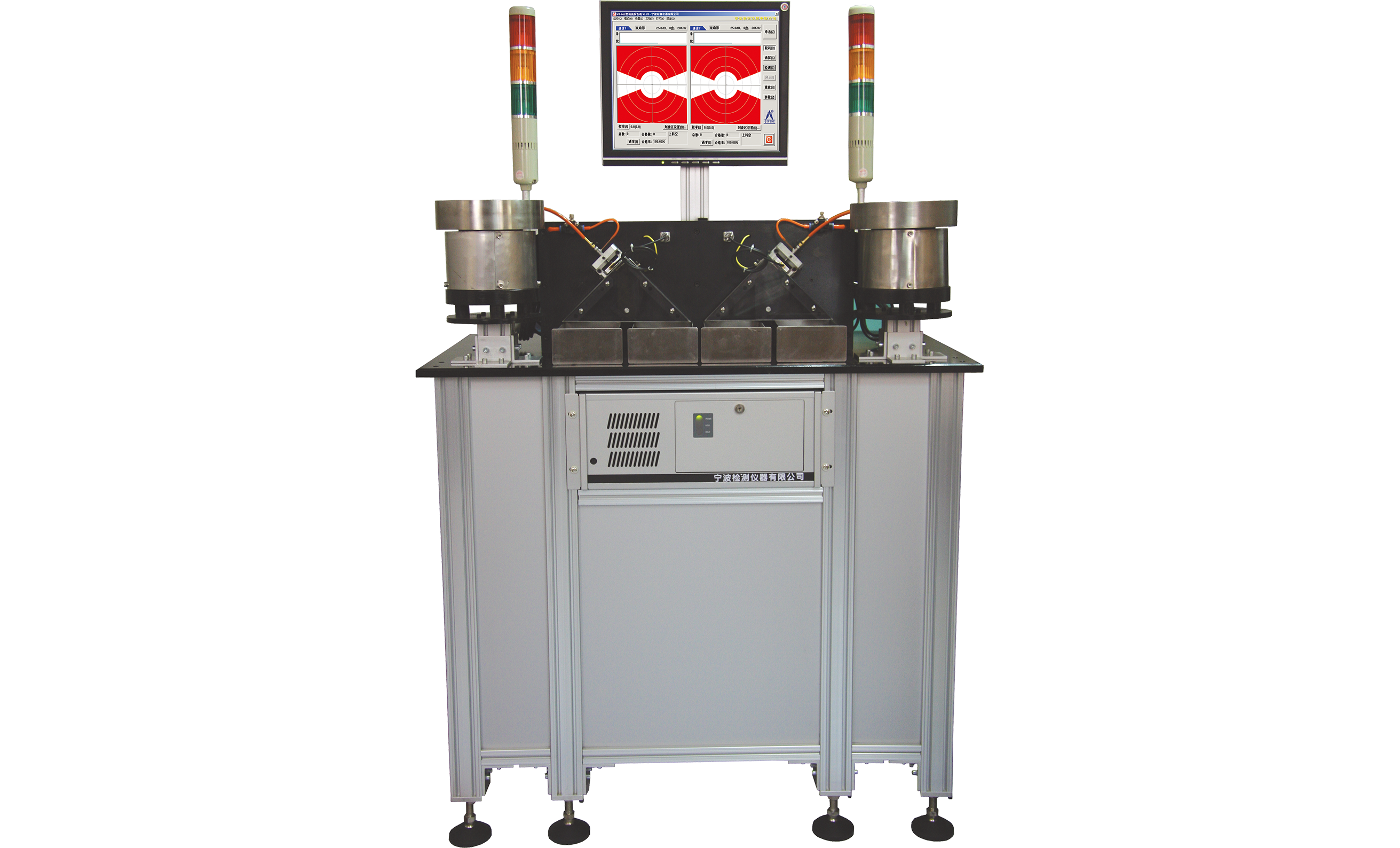

WT-662 H Hardness Sorting Machine

Main features:

  1. Hardness sorting of short metal bars
  2. Two separate channels.
  3. Frequency range: 100Hz-2MHz.
  4. Sensitivity:±1HRC
  5. Automatic loading, selecting, counting and unloading.
  6. Speed: 1 sec/piece (two channels).
  7. Sampling speed: 4×25000/s.
  8. Gain: 12-70db.
  9. Phase: 0°- 360°.
  10. Using industrial computer
  11. No damage after detection.
  12. Power: ≤400W(220V).
  13. Size: 1000mm×650mm×1600mm.
